Home>Products>UPS Meter Model 2014T

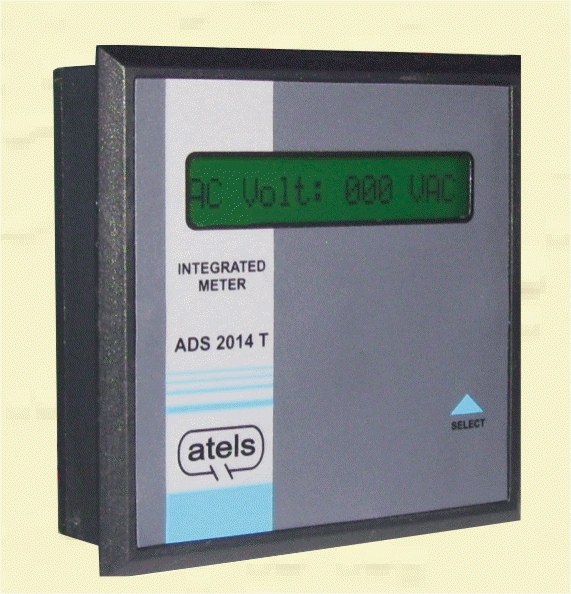

Integrated LCD Meter for UPS Model 2014T

ADS 2014T is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on a UPS. The Meter accepts normalised Inputs at 5V FSD. The general range available is 500V AC / DC, 100A AC/DC and Line frequency of 50 Hz.

It's specially available at a depth of 23 mm


      Features
  • Single meter measures AC Voltage, Current & Frequency, DC Voltage & Current
  • Micro controller based
  • Built-in selector switch
  • Back Lit Alphanumeric 16 X 1 Display
  • 3.5 digit resolution, 4.5 digit Measurement
  • 1% FSD Accuracy
  • Software calibration
  • Refresh rate of 2-3 samples per Second
  • Built-in digital noise filter to cater to harsh UPS field
  • Compact meter
 Technical Specifications
Input Signal AC Volt 0-5V for 500V fsd
  AC Amp 0-5V for 100A fsd
  Frequency from AC Volt
  DC Volt 0-5V for 500V fsd
  DC Amp   + & - 0-5V for 100A fsd
Accuracy better than 1% fsd
Display Alphanumeric LCD 16 X 1 back-lit
Auxillary Supply +/- 9V to 12VDC
Package 96 X 96 mm facia ; 23mm depth
Termination Relimate connectors
