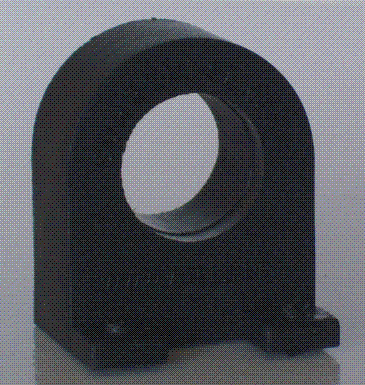

Hall Effect DC Current Sensor - 20mm

ADS DCCT-014 is a Hall Effect Based, Non-Contact, DC Current Sensor. The Vent dia is 20mm. It can measure 0-100A. The Output is 0-2VDC.



Economy Sensor




      Features
  • Non-Contact current measurement
  • Hall-effect based sensor
  • 1% FSD Accuracy
 Technical Specifications
Input Signal  DC A Cable 0 - 100A
Vent Dia  20mm
Accuracy  better than 1% fsd
Auxillary Supply  +/- 5VDC
Package  ABS Cabinet
Termination  Relimate / Pluggable connectors
