Home>Products>Charger Meter Model 2053

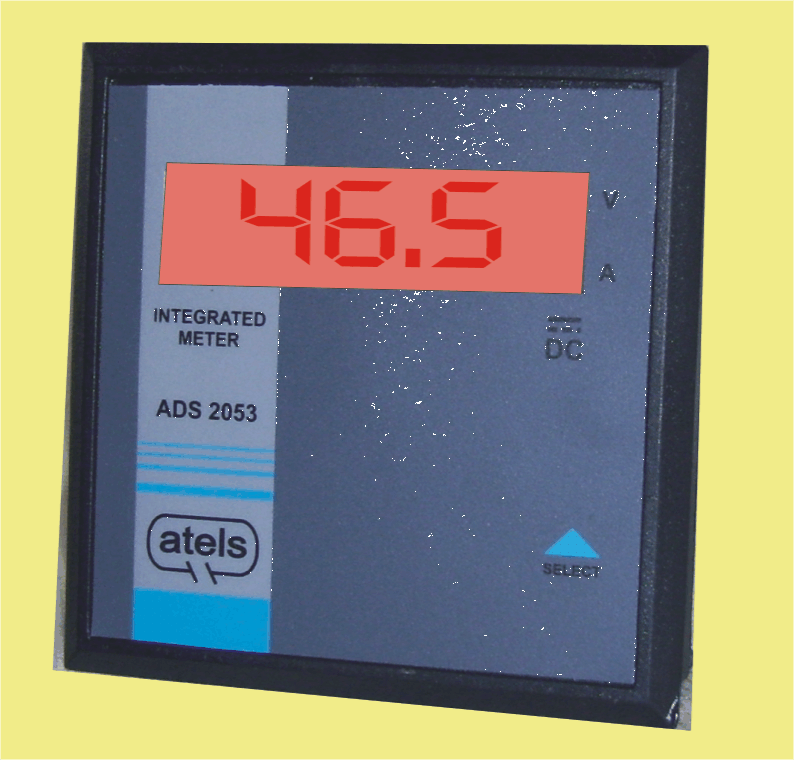

Integrated LED Meter for Chargers Model 2053

ADS 2053 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on a Battery charger. The Meter accepts direct Inputs.

The meter measures DC Voltage & DC Current.

The general range available is 48V DC & 15A DC

It's specially available at a depth of 20 mm



      Features
  • Single meter measures DC Voltage & Current
  • Micro controller based
  • Built-in selector switch
  • 3 digit Red high-bright LED display
  • 1% FSD Accuracy
  • Software calibration
  • Built-in digital noise filter to cater to harsh UPS field
  • Compact meter
Technical Specifications
Input Signal DC Volt
  DC Amp   + & -
Accuracy better than 1% fsd
Display High bright Red LED Display - 3digits
Auxillary Supply self powered
Package 96 X 96 mm facia ; 23mm depth
Termination Barrier connectors
